tempus System Class TelescopeSys

Interface

Parameters
range	float	Slant range to target (m)	50000.0
tel_focus_range	float	Focal distance of telescope (m)	50000.0
Dap	float	Diameter of telescope aperture (m)	1.0
vplat	Vector<float>	Platform velocity (x,y in m/s)	Vector()
vtarg	Vector<float>	Target velocity (x,y in m/s)	Vector()
propdxy	float	Propagation grid spacing (m)	0.01
control_interval	double	Update interval of the optical sensors (s)	0.001
beacon_wavelength	float	Wavelength of incoming beacon (m)	1.0e-06
Inputs
outgoingIncident	WaveTrain	Outgoing incident light
incomingIncident	WaveTrain	Incoming incident light
Outputs
outgoingTransmitted	WaveTrain	Outgoing transmitted light
incomingTransmitted	WaveTrain	Incoming transmitted light

Implementation

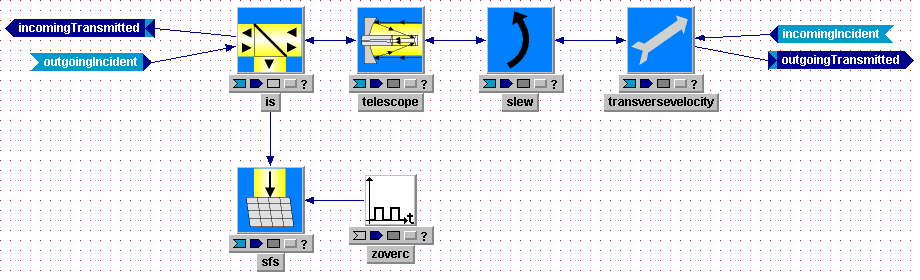

Subsystems
Telescope    telescope	simple telescope model with an annular aperture, fixed focus, no magnification.
name type value range   float    tel_focus_range apertureRadius   float    Dap/2.0 annulusRadius   float    0.0
Slew    slew
name type value xtiltDot   float    (vtarg(0)-vplat(0))/range ytiltDot   float    (vtarg(1)-vplat(1))/range xtilt0   float    -(vtarg(0)-vplat(0))/speedOfLight ytilt0   float    -(vtarg(1)-vplat(1))/speedOfLight
IncomingSplitter    is	Beam Splitter
SimpleFieldSensor    sfs	Generalized Wavetrain sensor
name type value wavelength   float    beacon_wavelength nxy   int    Dap / propdxy dxy   float    propdxy
SquareWave    zoverc
name type value startTime   double    (range/speedOfLight) pulseHeight   double    1.0 pulseLength   double    1.0e+06 pulseInterval   double    1.0e+06
TransverseVelocity    transversevelocity
name type value vx   float    vplat(0) vy   float    vplat(1) x0   float    0.0 y0   float    0.0

Connections
is.outgoingIncident	<<=	outgoingIncident
transversevelocity.incomingIncident	<<=	incomingIncident
incomingTransmitted	<<=	is.incomingTransmitted
outgoingTransmitted	<<=	transversevelocity.outgoingTransmitted
slew.outgoingIncident	<<=	telescope.outgoingTransmitted
telescope.incomingIncident	<<=	slew.incomingTransmitted
is.incomingIncident	<<=	telescope.incomingTransmitted
telescope.outgoingIncident	<<=	is.outgoingTransmitted
sfs.incident	<<=	is.incomingTransmitted2
slew.incomingIncident	<<=	transversevelocity.incomingTransmitted
transversevelocity.outgoingIncident	<<=	slew.outgoingTransmitted
sfs.on	<<=	zoverc.boolOutputSignal
