CoherentSource models an optically rough reflector illuminated by a uniform intensity plane wave with zero tilt. The reflected return is modeled using OPDs at each mesh point computed from a fixed random surface model. CoherentSource is a composite system, containing two subsystems, a UniformWave and a CoherentTarget. It has a single WaveTrain output, representing the transmitted light. See also IncoherentSource.

Parameters
minWavelength	float	Minimum wavelength (m)	1.0e-06
maxWavelength	float	Maximum wavelength (m)	1.0e-06
irradiance	float	Irradiance (W/(m^2))	1.0
reflectance	Grid<float>	Reflectance map.	Grid()
iseed	int	Random seed for roughness profile.	0
meanRoughness	float	Mean roughness (m).	0
Inputs
None
Outputs
transmitted	WaveTrain	Transmitted WaveTrain
phase	Grid<float>	Randomized roughness (m)
power	float	Total power in Watts
illumination	Grid<float>	Randomized roughness (m)
returned	Grid<float>	Randomized roughness (m)

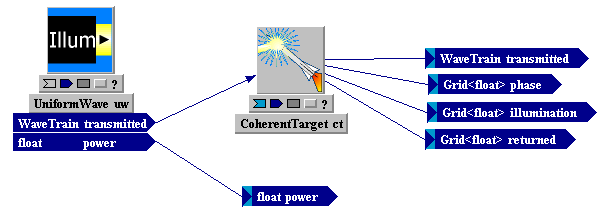

Subsystems
CoherentTarget    ct reflectance   Grid<float>    reflectance iseed   int    iseed meanRoughness   float    meanRoughness   UniformWave    uw minWavelength   float    minWavelength maxWavelength   float    maxWavelength irradiance   float    irradiance Connections phase   <<=   ct.phase transmitted   <<=   ct.transmitted power   <<=   uw.power returned   <<=   ct.returned illumination   <<=   ct.illumination ct.incident   <<=   uw.transmitted
Last Saved: Wed May 31 16:58:52 MDT 2006 by TVE version 2007B
