DeformableMirror models both the mechanical dynamics and the optical effects (applied OPD) of a deformable mirror. Actuator geometries, influence functions, and slaving relationships are generally specified using AoTool, and passed in via a parameter of type DMModel. The mirror actuators are modeled as critically damped harmonic oscillators. An idealized sensor (actually just a delay) measures the actuator positions and makes them available as an output. DeformableMirror is a composite system, consisting of three subsystems, of types DMOptics, ActuatorDynamics, and Delay.

Parameters
dmModel	DMModel&	Specification of deformable mirror	dmModel
timeLimit	double	Maximum amount of time that recallable outputs must be kept (if zero, then forever) (s)	0.0
timeConstant	float	controls the speed of actuator response; the actuators are modeled as critically damped harmonic oscillators.	1.e-6
pos0	Vector<float>	Initial position	Vector()
vel0	Vector<float>	Initial velocity	Vector()
acc0	Vector<float>	Initial acceleration (command)	Vector()
Inputs
actuatorCommands	Vector<float>	actuator commands (m)
incomingIncident	WaveTrain	describes all light incident from the "incoming" direction	WaveTrain()
outgoingIncident	WaveTrain	describes all light incident from the "outgoing" direction	WaveTrain()
Outputs
incomingTransmitted	WaveTrain	describes all light transmitted in the "incoming" direction
outgoingTransmitted	WaveTrain	describes all light transmitted in the "outgoing" direction
measuredActuatorPositions	Vector<float>	current actuator positions
AppliedOPD	Grid<float>	shows the OPD applied basd on the DM shape
Subsystems

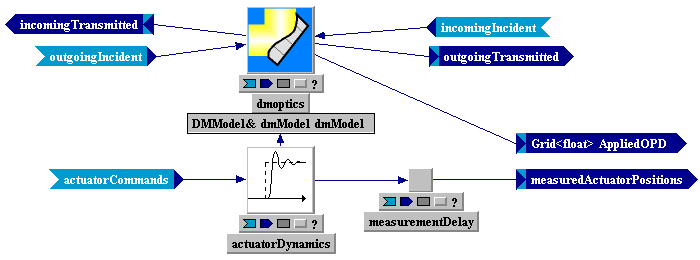

DMOptics    dmoptics dmModel   DMModel&    dmModel   ActuatorDynamics    actuatorDynamics nact   int    dmModel.nDOF() timeLimit   double    timeLimit timeConstant   float    timeConstant pos0   Vector<float>    pos0 vel0   Vector<float>    vel0 acc0   Vector<float>    acc0   Delay    measurementDelay delay   float    1.0e-10f Connections dmoptics.outgoingIncident   <<=   outgoingIncident dmoptics.incomingIncident   <<=   incomingIncident actuatorDynamics.actuatorCommands   <<=   actuatorCommands incomingTransmitted   <<=   dmoptics.incomingTransmitted outgoingTransmitted   <<=   dmoptics.outgoingTransmitted measuredActuatorPositions   <<=   measurementDelay.delayedVector AppliedOPD   <<=   dmoptics.AppliedOPD measurementDelay.recallableVector   <<=   actuatorDynamics.actuatorPositions dmoptics.actuatorPositions   <<=   actuatorDynamics.actuatorPositions
