IncoherentSource models an optically rough reflector illuminated by a uniform intensity plane wave. The reflected return is modeled using multiple independent speckle realizations. IncoherentSource is a composite system, containing two subsystems, a UniformWave and a IncoherentReflector. It has a single WaveTrain output, representing the transmitted light. See also CoherentSource.

Parameters
minWavelength	float	Minimum wavelength in m	minWavelength
maxWavelength	float	Maximum wavelength in m	maxWavelength
irradiance	float	Irradiance in W/(m^2)	irradiance
reflectance	Grid<float>	reflectance map	reflectance
dxymax	float	maximum allowed mesh spacing for intensity integration	dxymax
nWaves	int	number of speckle realizations	nWaves
iseed	int	random number seed for speckle	iseed
Inputs
None
Outputs
transmitted	WaveTrain
illumination	Grid<float>
power	float	Total power in Watts
returned	Grid<float>

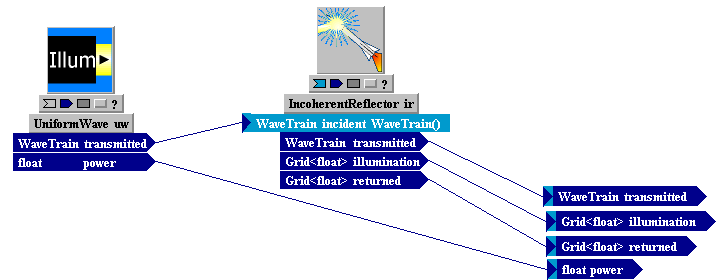

Subsystems
UniformWave    uw minWavelength   float    minWavelength maxWavelength   float    maxWavelength irradiance   float    irradiance   IncoherentReflector    ir reflectance   Grid<float>    reflectance dxymax   float    dxymax nWaves   int    nWaves iseed   int    iseed Connections transmitted   <<=   ir.transmitted illumination   <<=   ir.illumination power   <<=   uw.power returned   <<=   ir.returned ir.incident   <<=   uw.transmitted
