NEBeamsplitter is part of the WaveTrain system class library
NEBeamSplitter is an idealized model of a beam splitter that can accept light from and transmit light to the four cardinal directions. See the descriptions of the outputs for the direct mapping.
|
|
Parameters
|
| None |
|
Inputs
|
| northIncident | WaveTrain | Incident light from the north | WaveTrain() |
| eastIncident | WaveTrain | Incident light from the east | WaveTrain() |
| westIncident | WaveTrain | Incident light from the west | WaveTrain() |
| southIncident | WaveTrain | Incident light from the south | WaveTrain() |
|
Outputs
|
| northTransmitted | WaveTrain | Transmitted light to the north (from west and south) | |
| eastTransmitted | WaveTrain | Transmitted light to the east (from west and south) | |
| westTransmitted | WaveTrain | Transmitted light to the west (from east and north) | |
| southTransmitted | WaveTrain | Transmitted light to the source (from east and north) | |
|

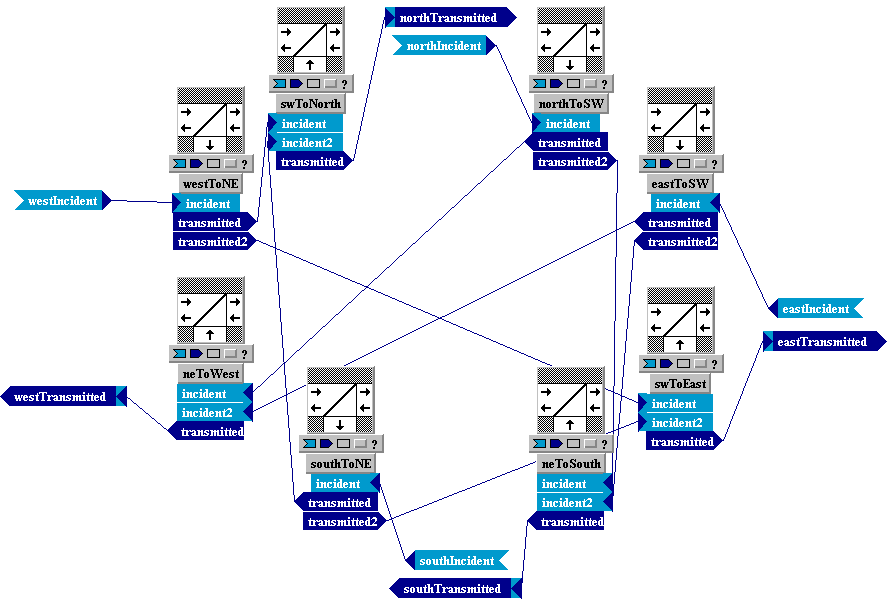

Subsystems |
|
|
|
|
|
| northToSW.incident | <<= | northIncident |
| southToNE.incident | <<= | southIncident |
| eastToSW.incident | <<= | eastIncident |
| westToNE.incident | <<= | westIncident |
| southTransmitted | <<= | neToSouth.transmitted |
| eastTransmitted | <<= | swToEast.transmitted |
| westTransmitted | <<= | neToWest.transmitted |
| northTransmitted | <<= | swToNorth.transmitted |
| swToNorth.incident | <<= | westToNE.transmitted |
| swToEast.incident | <<= | westToNE.transmitted2 |
| neToWest.incident | <<= | northToSW.transmitted |
| neToSouth.incident | <<= | northToSW.transmitted2 |
| neToSouth.incident2 | <<= | eastToSW.transmitted2 |
| neToWest.incident2 | <<= | eastToSW.transmitted |
| swToNorth.incident2 | <<= | southToNE.transmitted |
| swToEast.incident2 | <<= | southToNE.transmitted2 |
|
|
|
Last Saved: Wed Sep 04 02:59:13 MDT 2002 by TVE version 2007B
|
