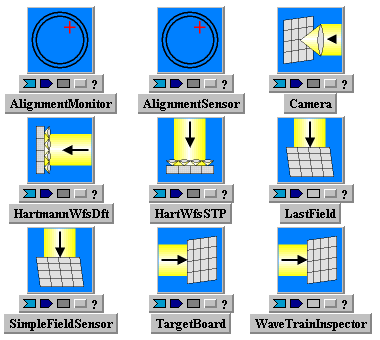

SensorLib is one of six sub-libraries which make up WtLib, the WaveTrain component library. It contains components which model optical sensors, including both realistic sensors, such as digital cameras and hartmann wavefront sensors, and sensors which are not realistic, because they work directly with the complex field, but which can be very useful for analysis. All the realistic sensors are derived from a common base class, IntensitySensor, and all the nonrealistic sensors are derived from the class FieldSensor; both defined in the WaveTrain class library.

Parameters

None

Inputs

None

Outputs

None

Subsystems

Camera    camera focalLength   float     minWavelength   float    wavelength maxWavelength   float    wavelength nxyPupil   int    apdiam / propdxy dxyPupil   float    propdxy nxyDetector   int    64 dxyDetector   float    wavelength / apdiam computationalLag   double       SimpleFieldSensor    simplefieldsensor wavelength   float    wavelength nxy   int    apdiam / propdxy dxy   float    propdxy   HartmannWfsDft    hartmannwfs wavelength   float    wavelength nxyPupil   int    propnxy dxyPupil   float    propdxy nxyDetector   int     dxyDetector   float    wavelength / (2.0*dmModel.xMeasurementWidth()) subapWidth   float    dmModel.xMeasurementWidth() detectorPlaneDistance   float    1.0 focalDistance   float    1.0 magnification   float     overlapRatio   float    0.0 xSubap   Vector<float>    dmModel.xMeasurementLocations() ySubap   Vector<float>    dmModel.yMeasurementLocations() xSlope0   float    0.0 ySlope0   float    0.0   TargetBoard    targetboard wavelength   float    1.0e-06 nxy   int    64 dxy   float    1.0   LastField    lastfield   AlignmentSensor    alignmentsensor minWavelength   float    0.0 maxWavelength   float    0.0 useTilts   bool    true useField   bool    true intensityWeighted   bool    false seriesLength   int    0 computationalLag   double    0.0   AlignmentMonitor    alignmentmonitor minWavelength   float    0.633e-06 maxWavelength   float    0.633e-06 useTilts   bool    true useField   bool    false intensityWeighted   bool    false seriesLength   int    0 computationalLag   double    0.0 exposureInterval   double    0.001 exposureLength   double    0.000001 sampleInterval   double    0.0   WaveTrainInspector    wavetraininspector   HartWfsSTP    hartwfsstp wavelength   float    1.0e-06 nxyPupil   int    512 dxyPupil   float    0.01 nxyDetector   int    512 dxyDetector   float    10.0e-06 subapWidth   float    0.1 detectorPlaneDistance   float    1.0 focalDistance   float    1.0 magnification   float    1.0 overlapRatio   float    0.0 xSubap   Vector<float>    Vector() ySubap   Vector<float>    Vector() xSlope0   float    0.0 ySlope0   float    0.0 stpFlag   int    0 Last Saved: Wed Nov 18 20:43:35 MST 1998 by TVE version 2007B
