tempusSystem Class TargetBoard
TargetBoard is part of the WaveTrain system class library

TargetBoard models a "target board" intensity sensor: the intensity of an incident wavefront is measured at a specified mesh of sample points, corresponding to individual point-detector locations. If multiple wavefronts are received simultaneously they are assumed to be mutually incoherent, so their intensities add. The net intensity is then integrated over the exposure length to produce an "integratedIntensity" output in units of J/m^2.
See the WT User Guide for a detailed discussion of the triggering of sensor exposures. Note in particular that the input "sampleInterval" is only used to generate multiple samples within one "exposureLength". To obtain one sample per "exposureLength" (the typical practice), set "sampleInterval" to 0.0.
Like all WaveTrain optical sensors, TargetBoard works with both pulsed and continuous wave illumination. It has a single WaveTrain input, representing the incident light.

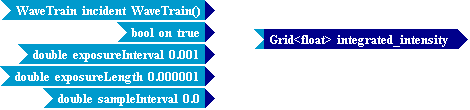

Tempus Block Diagram Editor Snapshot
Parameters
wavelength  float   wavelength at which this sensor responds (m)   1.0e-06
nxy  int   Number of sample points across sensor   64
dxy  float   Spacing of sensor sample points (m)   1.0
Inputs
incident  WaveTrain   Incident Wavetrain to be sampled   WaveTrain()
on  bool   Flag indicating whether or not the sensor is on   true
exposureInterval  double   exposure interval   0.001
exposureLength  double   exposure length   0.000001
sampleInterval  double   Time between samples within one exposureLength (s)   0.0
Outputs
integrated_intensity  Grid<float>   Temporally-integrated intensity (J/m^2)
Subsystems


Last Saved: Thu Mar 15 17:47:53 MDT 2007 by TVE version 2007B
